Request a Quote - Perforated Grille |
| Pattern Type |

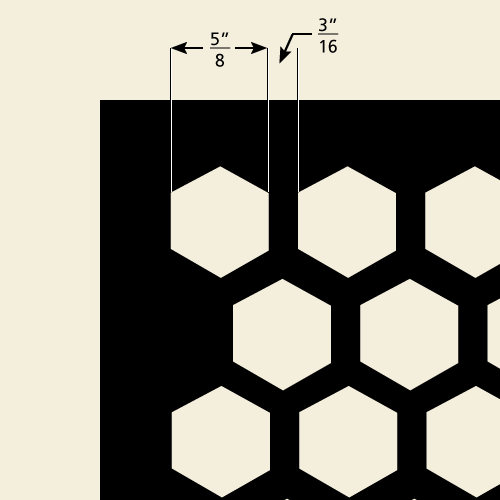

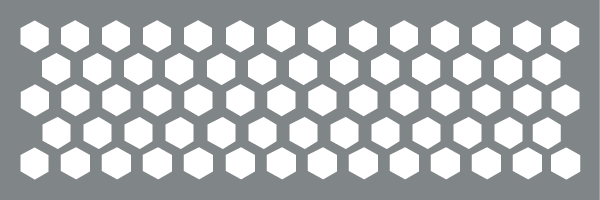

NO. 201 Honeycomb
Available Pattern Sizes:
5/8″ — 50% open

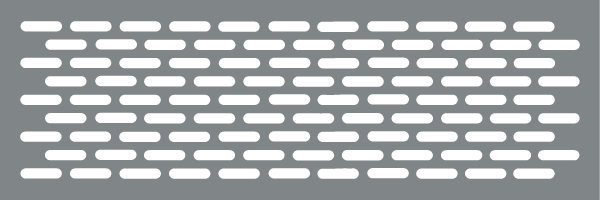

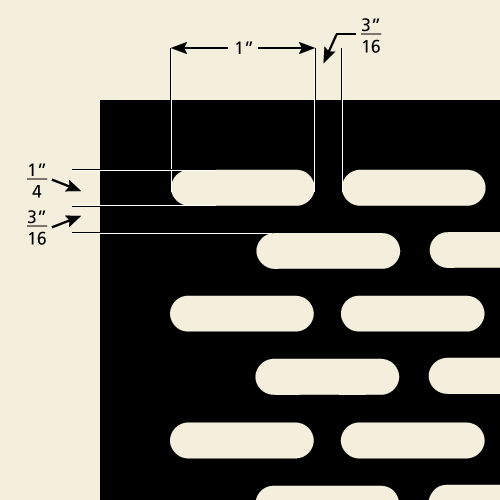

NO. 202 Oval Slots
Available Pattern Sizes:
1″ — 34% open

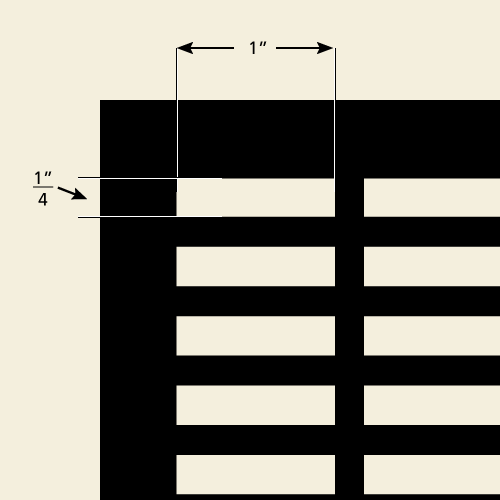

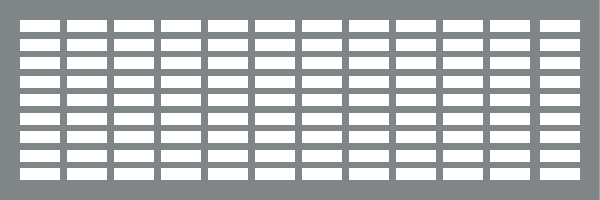

NO. 209 Straight Slots
Available Pattern Sizes:
1/4 x 1″ — 35% open
3/8″ x 1″ — 43% open

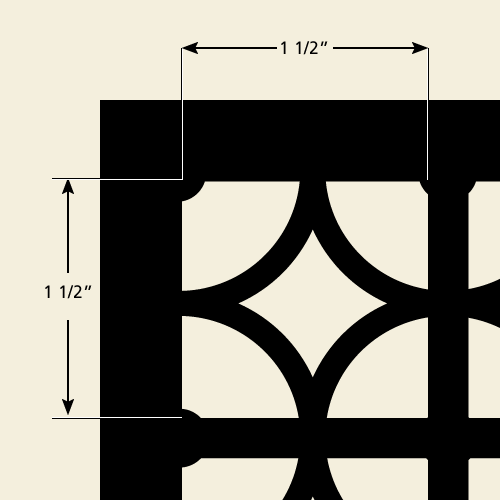

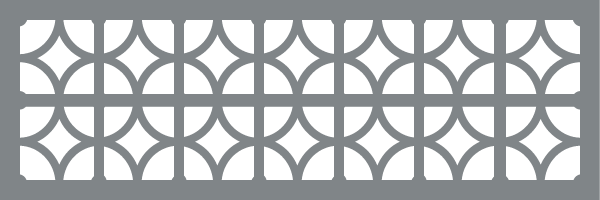

NO. 210 Crossed Circle Available Pattern Sizes:
1 1/2″ — 55% open
2″ — 55% open

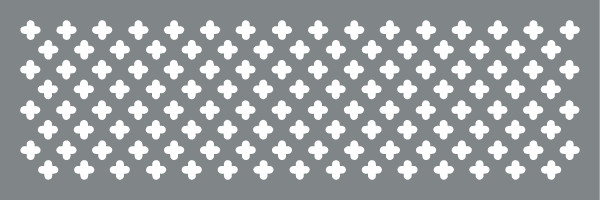

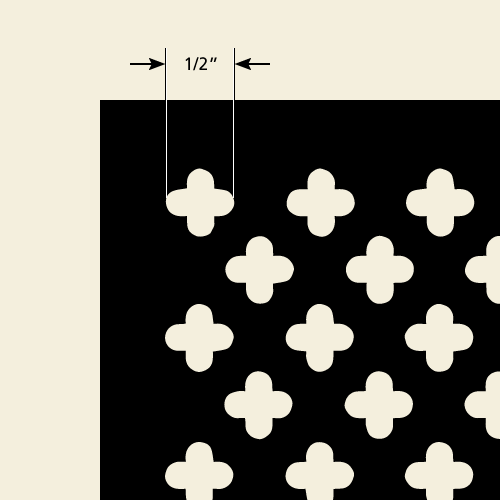

NO. 212 Round Cross Available Pattern Sizes:
1/2x1″ — 52% open

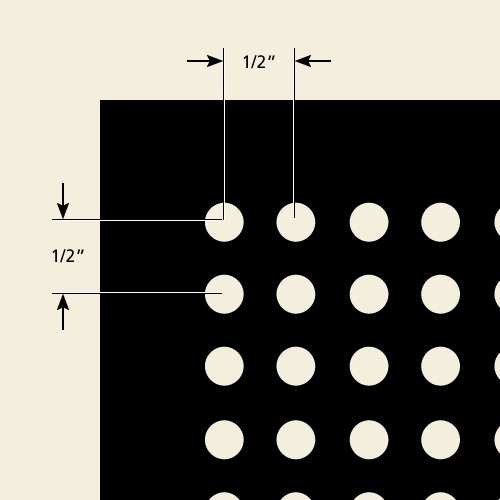

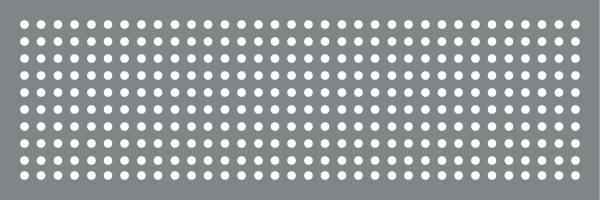

NO. 213 Formal Hole Available Available Pattern Sizes:
All 23% open.
1/4″ hole with 1/2″ center
3/8″ hole with 3/4″ center
1/2″ hole with 1″ center
3/4″ hole with 1 1/2″ center
Centers can be custom sized.

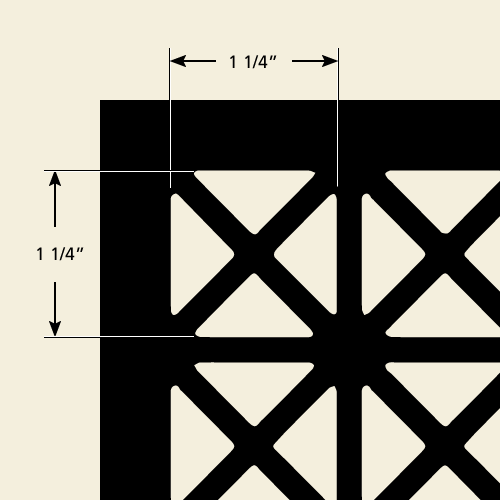

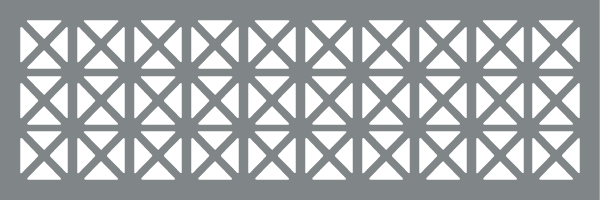

NO. 214 Criss Cross Available Pattern Sizes:
1 1/4x1″ — 41% open

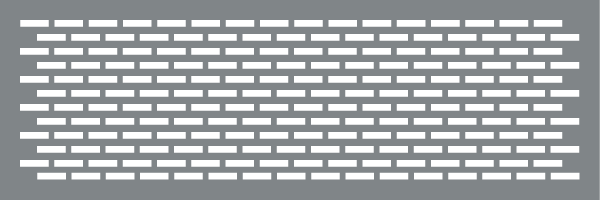

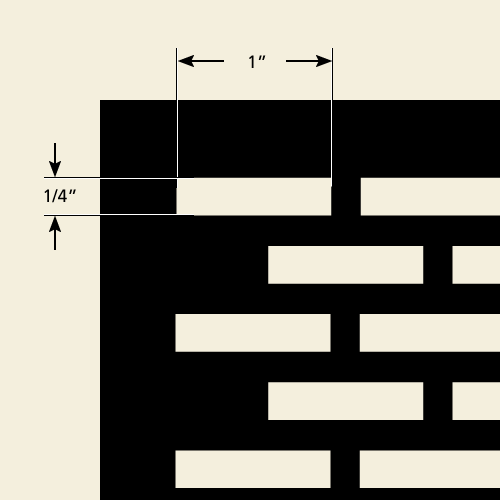

NO. 215 Offset Slots Available Pattern Sizes:
1″x1/4″ — 35% open
3/8″x1″ — 43% open

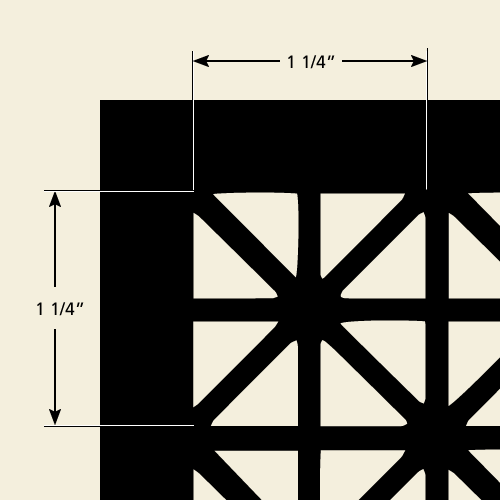

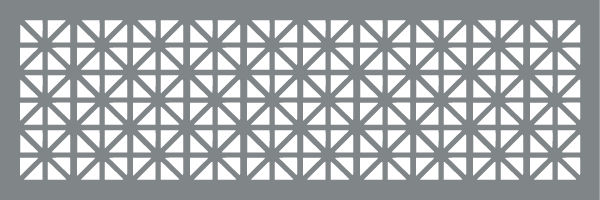

NO. 216 Center Ray Available Pattern Sizes:
1 1/4″x 1 1/4″ — 39% open

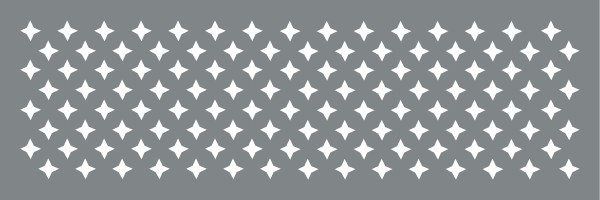

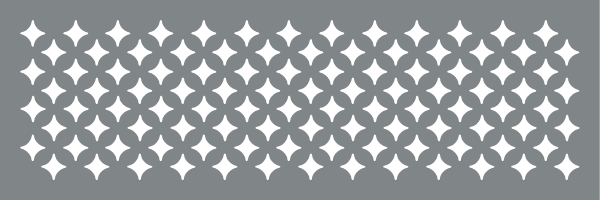

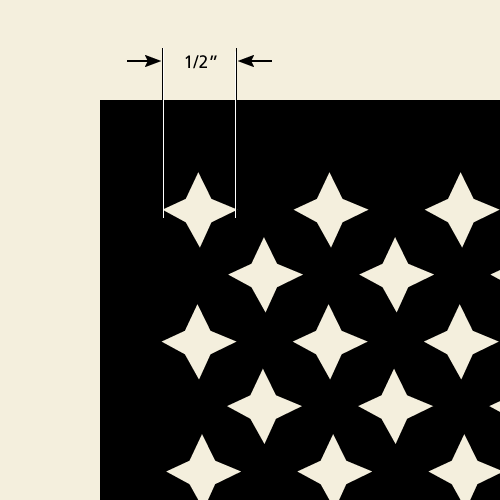

NO. 217 Star Available Pattern Sizes:
1/2″ — 47% open

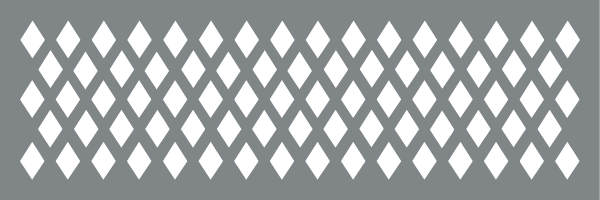

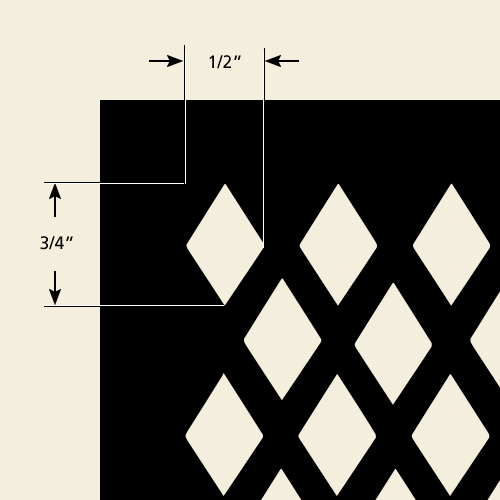

NO. 219 Diamond Available Pattern Sizes:
1/2″ — 64% open

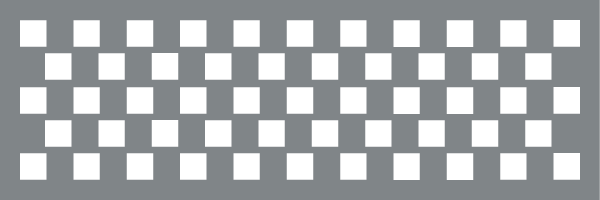

NO. 220 Checkerboard Available Pattern Sizes:
3/8″ — 38% open
1/2″ — 38% open
3/4″ — 38% open
1″ — 38% open

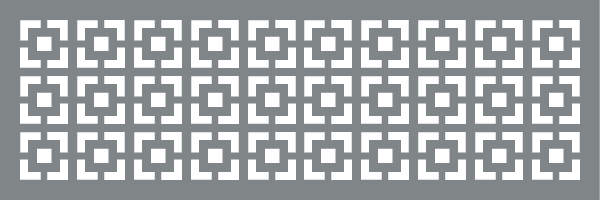

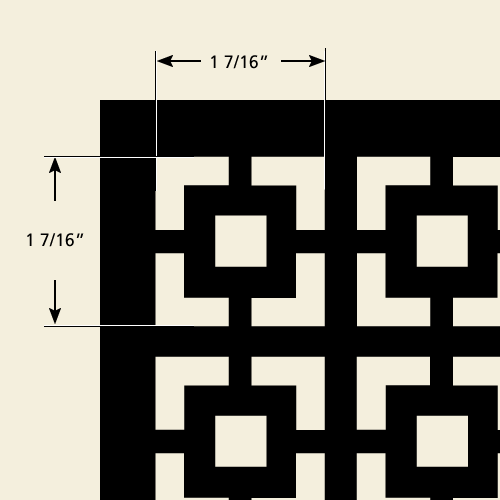

NO. 221 Square L Available Pattern Sizes:
1 7/16″ — 44% open
2″ — 53% open

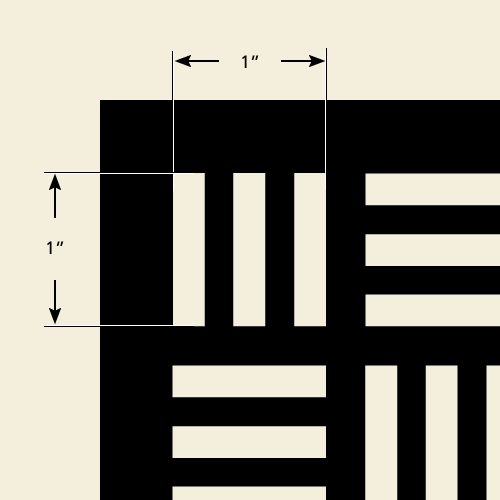

NO. 222 Cross Weave Available Pattern Sizes:
1″x1″ — 38% open
3/4″ — 3/4″ — 35% open

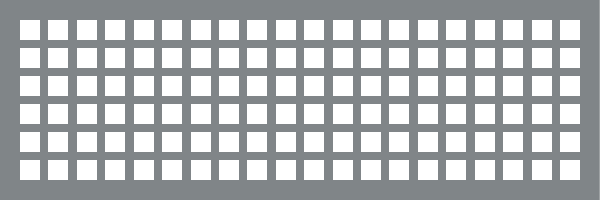

NO. 224 Square Available Pattern Sizes:
1/4″ with 3/8″ bar — 38% open
1/2″ with 1/4″ bar — 45% open
3/4″ with 1/4″ bar — 56% open
1″ with 1/4″ bar — 64% open

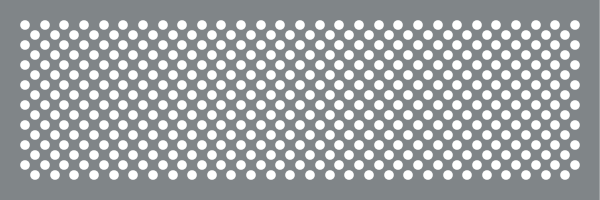

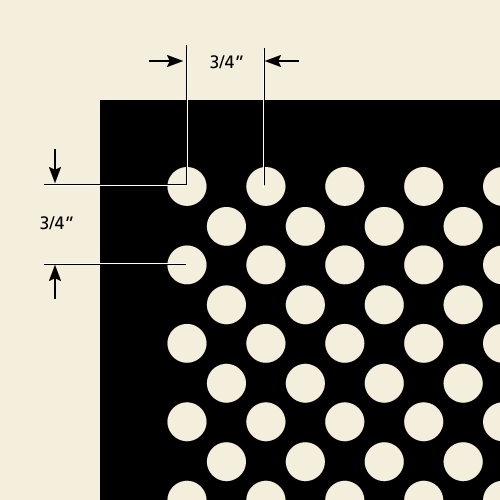

NO. 225 Offset Hole Available Pattern Sizes:
3/8″ hole with 3/4″ center
1/2″ hole with 1″ center
3/4″x1 1/2″ center

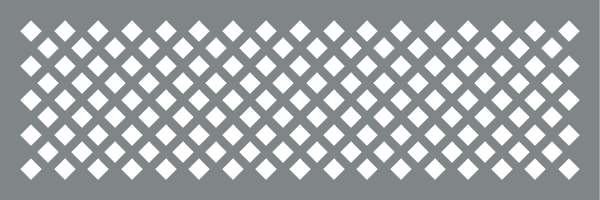

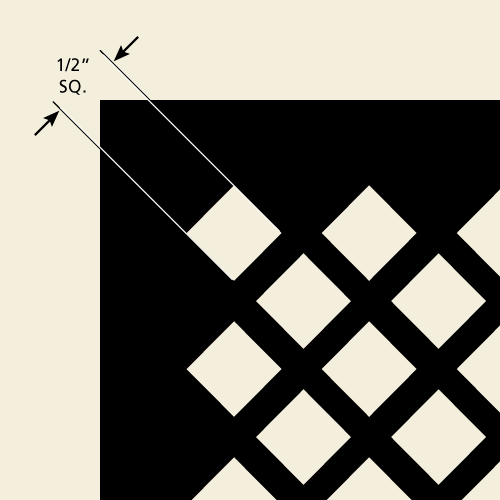

NO. 226 Square 45° Available Pattern Sizes:
1/2″ square — 45% open
3/4″ — 56% open
1″ — 64% open

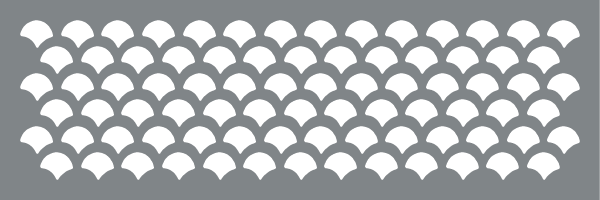

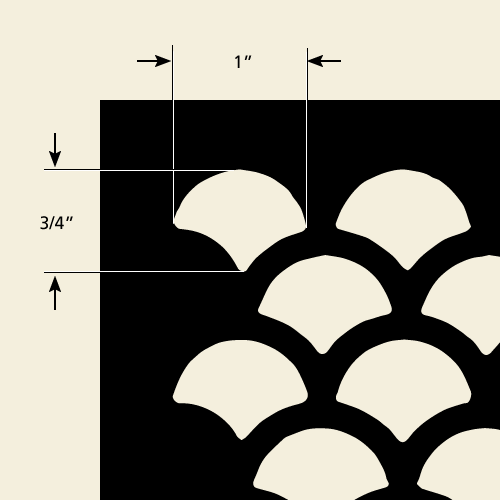

NO. 227 Shell Available Pattern Sizes:
5/8″ — 48% open
1″ — 54% open
1 1/2″ — 70% open

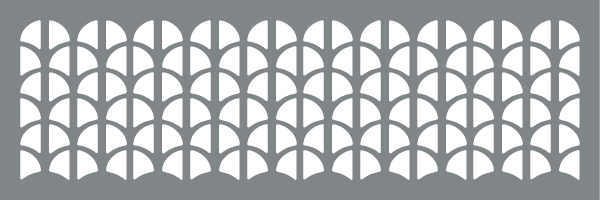

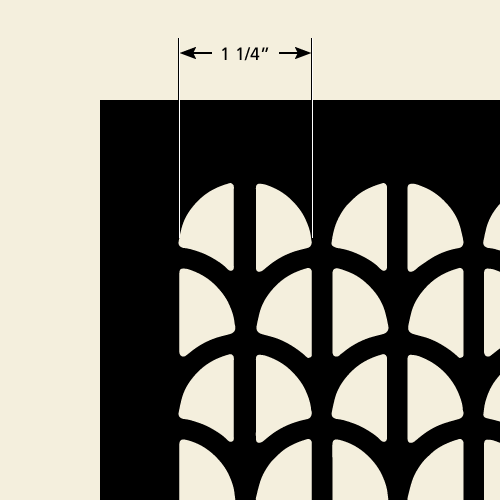

NO. 229 Half Shell Available Pattern Sizes:
1 1/4″ — 54% open
1 3/4″ — 60% open

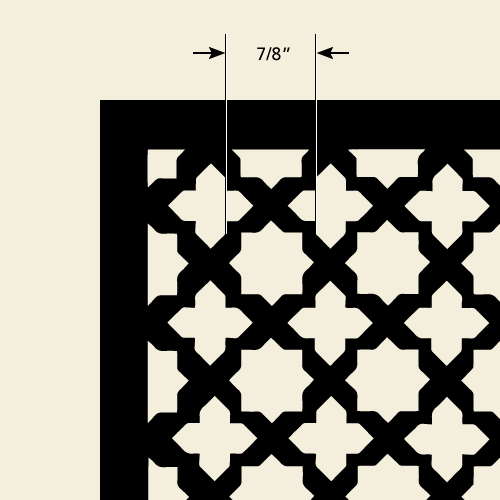

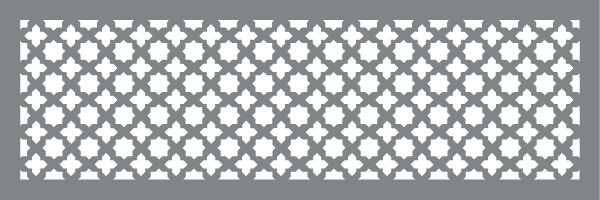

NO. 250 Square and Cross Available Pattern Sizes:
7/8″ — 57% open

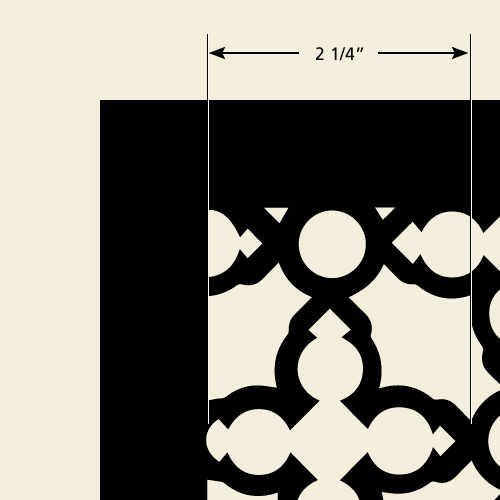

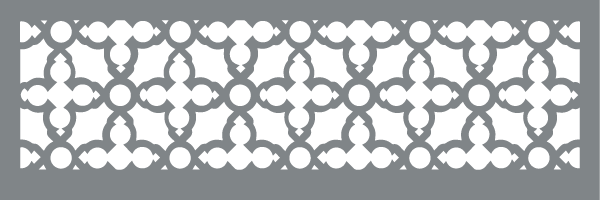

NO. 251 Victorian Available Pattern Sizes:
2 1/4″ — 64% open

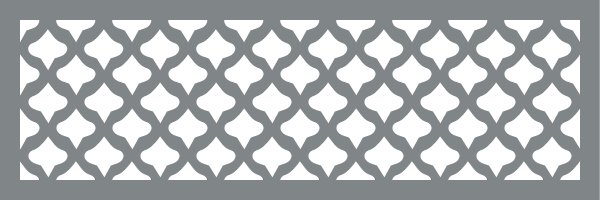

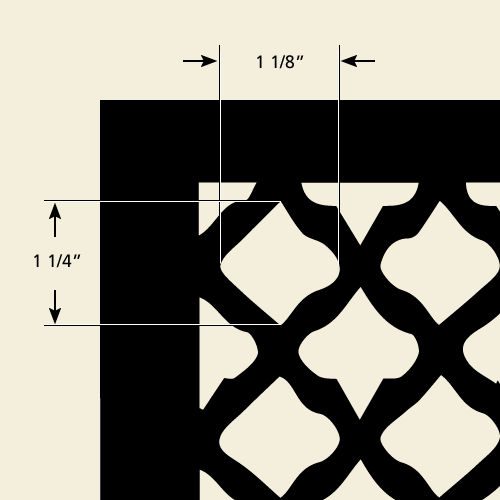

NO. 252 French Motif Available Pattern Sizes:
1 1/4″ — 72% open
1 3/4″ — 72% open

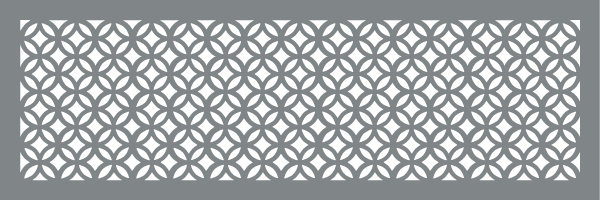

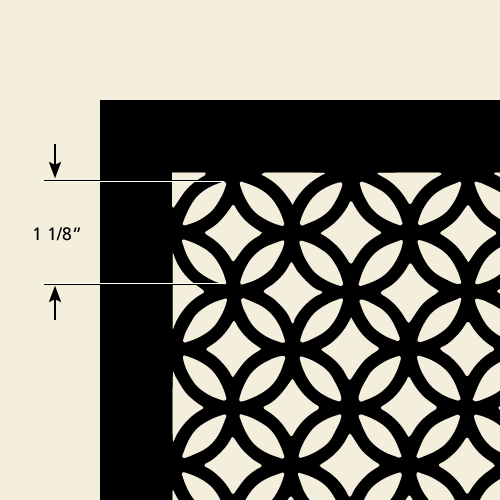

NO. 253 Snowflake Available Pattern Sizes:
1 1/8″ — 58% open

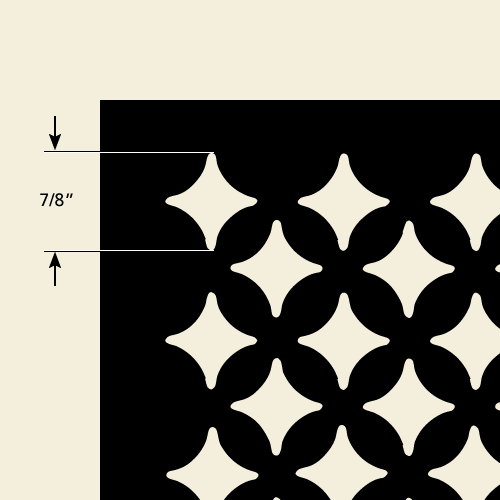

NO. 254 Blossom Available Pattern Sizes:
7/8″ — 54% open

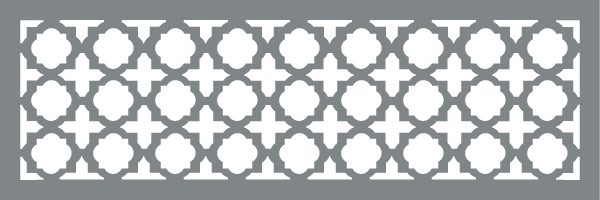

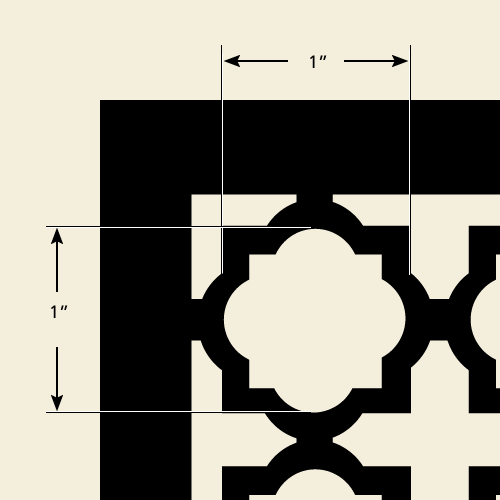

NO. 255 Italian Motif Available Pattern Sizes:
1″ — 75% open
1 1/2″ — 75% open
2″ — 75% open
|
| Click on Right Arrow or dots to View More Patterns |
| * Select Pattern Type: |
|
Required |
| Pattern Size |
| * Select Pattern Size: |
(Requires Selecting Pattern Type first)
|
Required |
| Materials |
|
*
Required
|
| Finish Types |
*
Required
|

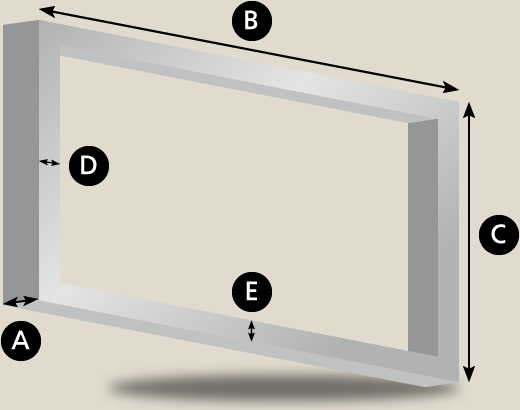

| Dimensions |
 |
| Thickness |
| From 1/32″ to 3/16″ and up to 1/8″ - Before Waterjet. Standard is 1/16″. |
| * Thickness (A): |
|
Required |

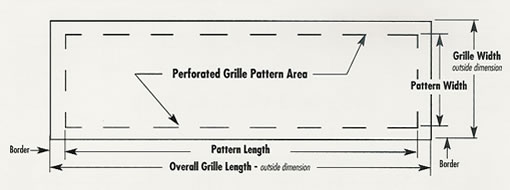

| Overall Size |
| Width (B) |
|
|
| * Whole Numbers for Width (Inches): |
|
Required |
| Fraction Value for Width: |
|
|
| Height (C) |
|
|
| * Whole Numbers for Height (Inches): |
|
Required |
| Fraction Value for Height: |
|
|
| Border Size |
| Please specify minimum required, typically range from 1/2 to 1 1/2″ depending on grille size |
| *Minimum Width (D): |
|
Required |
| *Minimum Height (E): |
|
Required |
| Doors |
| * Number of Doors: |
|
Required |
Solid Panel
Continue Pattern
|
| Door Pattern |
|
|
| Where to place Doors, Location, Dimensions & Other Specs (Typically Door is 6 1/2″): |
|
|
| Pattern Direction |
| Pattern Direction (Non-Symmetrical Patterns Only): |
|
|
| Screw Hole Location |
| * Screw Hole Location: |
|
Required |
| Mounting |

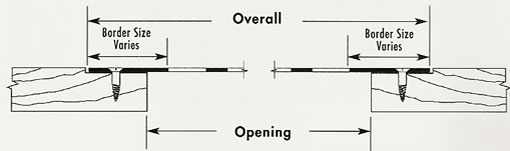

Mounting Type #1
Grille connection mortised into woodwork with countersink holes for flush mounting.

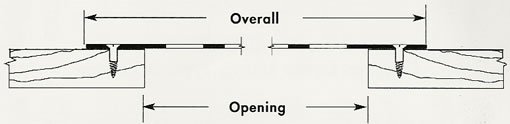

Mounting Type #2
Grille on top of frame with countersink holes.

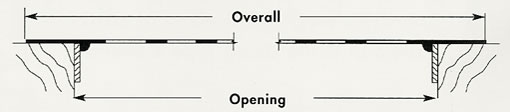

Mounting Type #3
Grille set in top surface with inner frame to prevent movement.
|
| |
| * Mounting Type: |
|
Required |
Dampers are available and can be added to some Perforated Grille sizes. |
